- 90mm waterproof 4dbi 4G LTE antenna straight SMA connector
Dipole antenna
High performance, 4dbi peak gain
Antenna connector type can be customized
Antenna frequency range can be customized
Waterproof straight head SMA LTE antenna
High performance, 4dbi peak gain
Antenna connector type can be customized
Antenna frequency range can be customized
Waterproof straight head SMA LTE antenna
Antenna performance parameter
|
Item |
Specifications |
|
|
天线性能 Antenna |

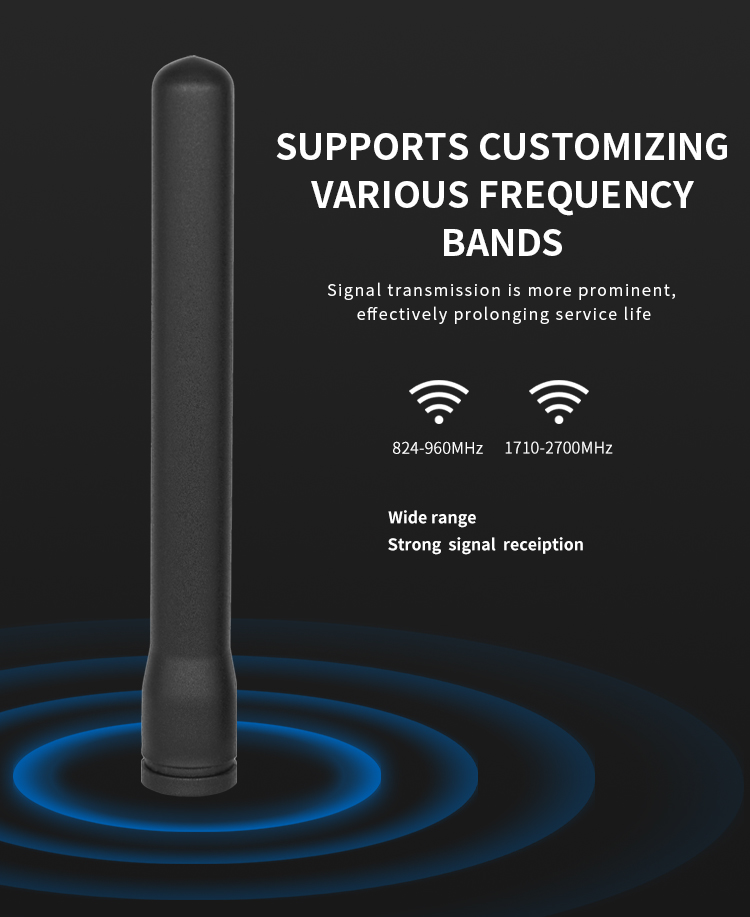

频率范围 Frequency Range |
824-980/1710-2700MHz |
|

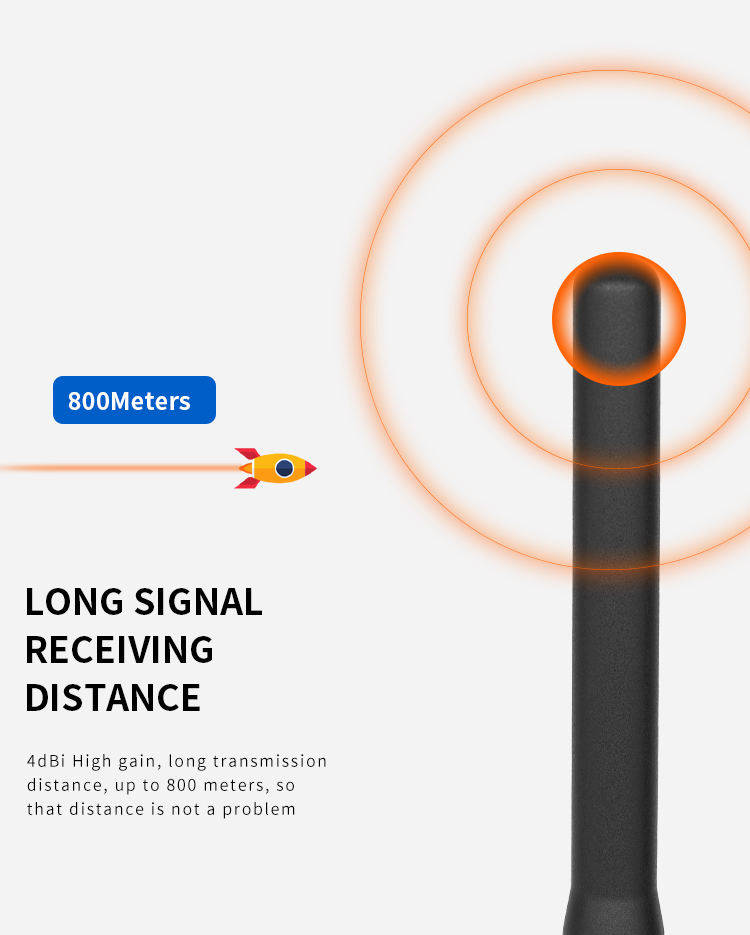

增益 Gain |
4dBi |
|
|
驻波比 V.S.W.R |
≤1.9 |
|
|
阻抗 Impendance |
50Ω |
|
|
天线长度 Antenna size |
90MM |
|
|
极化方式 Polarization |
Vertical |
|
|
机械性能 Mechanical |
内部结构 Inner Material |
Copper tube |
|

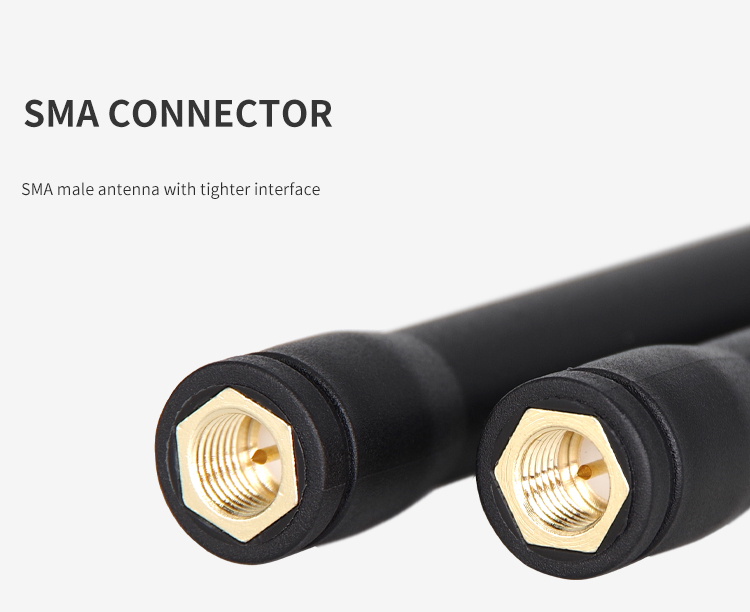

接头类型 Connector type |
SMA male or customizable |
|
|
安装方式 Mounting Method |
SMA connector |
|
|
环境性能 Environmental |
工作温度 Operating Temperature |
-40℃~+80℃ |
|
贮存温度 Storage Temperature |
-40℃~+85℃ |
|
|
环境友好 Environmentally Friendly |
ROHS Compliant |
|
Antenna dimension drawing
