• SMA external 4G small folding antenna omnidirectional rod WiFi routing module antenna LTE high gain
  • Dipole antenna
    3dBi peak gain antenna
    High performance, high efficiency antenna
    Bendable SMA small antenna

点击在线询价

Antenna performance parameter

Item

Specifications

天线性能 Antenna

频率范围 Frequency Range

698-980/1710-2700MHz

增益 Gain

3dBi

驻波比 V.S.W.R

≤2.0

阻抗 Impendance

50Ω

天线长度 Antenna size

108MM

极化方式 Polarization

Vertical

机械性能 Mechanical

内部结构 Inner Material

Copper tube

接头类型 Connector type

SMA Male or customizable

安装方式 Mounting Method

SMA Screw Mount

环境性能 Environmental

工作温度 Operating Temperature

-40℃~+80℃

贮存温度 Storage Temperature

-40℃~+85℃

环境友好 Environmentally Friendly

ROHS Compliant

Antenna dimension drawing

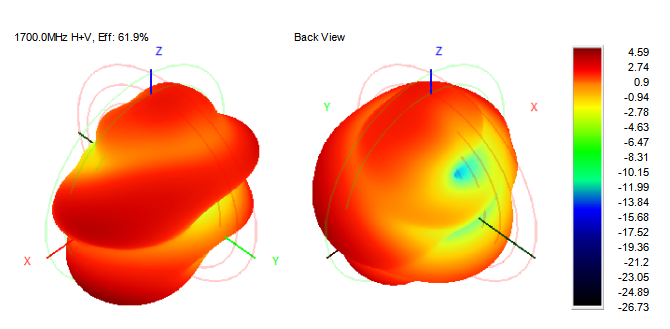

Antenna test 3D diagram
