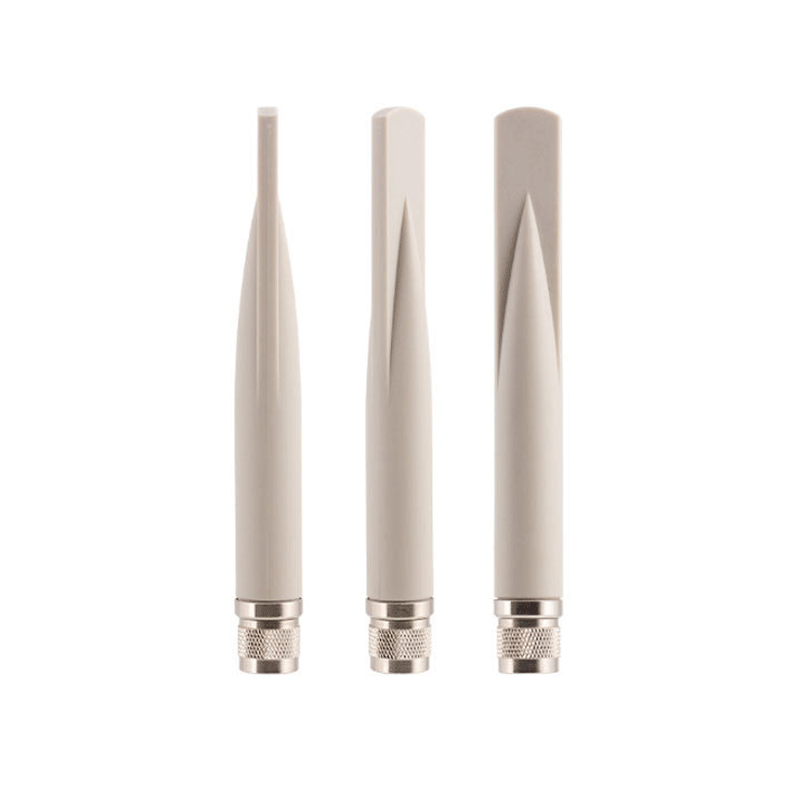

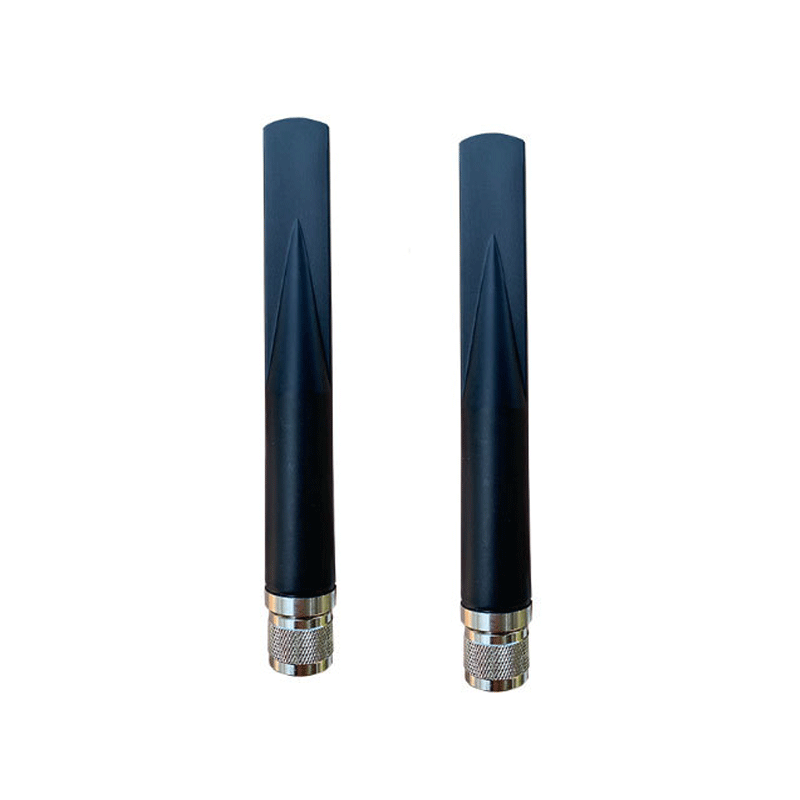

- 5g base station antenna n-head 4G 5g fishtail antenna outdoor waterproof n
Dipole antenna, full frequency 4G 5g antenna
Frequency band below 600-5925mhz and 6GHz
Fully backward compatible with 4G LTE
High performance, 5dBi peak gain
Outdoor waterproof n male 5g antenna
Frequency band below 600-5925mhz and 6GHz
Fully backward compatible with 4G LTE
High performance, 5dBi peak gain
Outdoor waterproof n male 5g antenna
Antenna performance parameter
|
Item |
Specifications |
|
|
天线性能 Antenna |
频率范围 Frequency Range |
700-960/1710-2700/330-3800/5125-5925MHz |
|
增益 Gain |
5dBi |
|
|
驻波比 V.S.W.R |
≤2.5 |
|
|
阻抗 Impendance |
50Ω |
|
|
天线长度 Antenna size |
176MM |
|
|
极化方式 Polarization |
Vertical |
|
|
机械性能 Mechanical |
内部结构 Inner Material |
Copper tube |
|
接头类型 Connector type |
N male or customizable |
|
|
安装方式 Mounting Method |
N male |
|
|
环境性能 Environmental |
工作温度 Operating Temperature |
-40℃~+80℃ |
|
贮存温度 Storage Temperature |
-40℃~+85℃ |
|
|
环境友好 Environmentally Friendly |
ROHS Compliant |
|
